Impfarmatur [95730978]

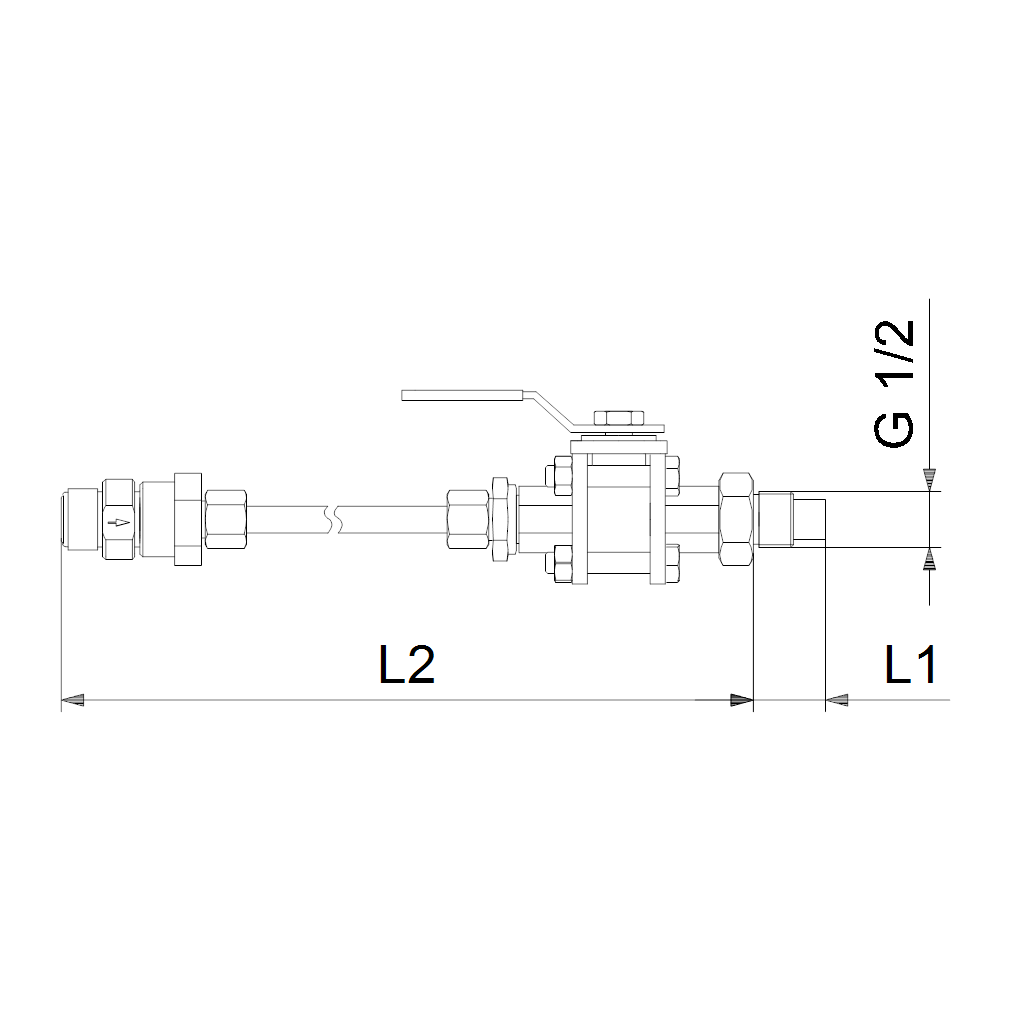

Injection units connect the dosing line with the process line. They ensure a minimum counterpressure of 0.7 bar, and avoid backflow of the dosing liquid. The spring-loaded non-return valve comes with Tantal spring Hot-injection units with ball valve can be used for direct injection of dosing liquid into processes with a temperature of up to 120 °C. In addition to standard injection units they include:

Injection pipe in stainless steel. Ball valve in stainless steel installed between the injection pipe and

the cooling pipe

Bendable cooling pipe, stainless steel, length 1 m.
