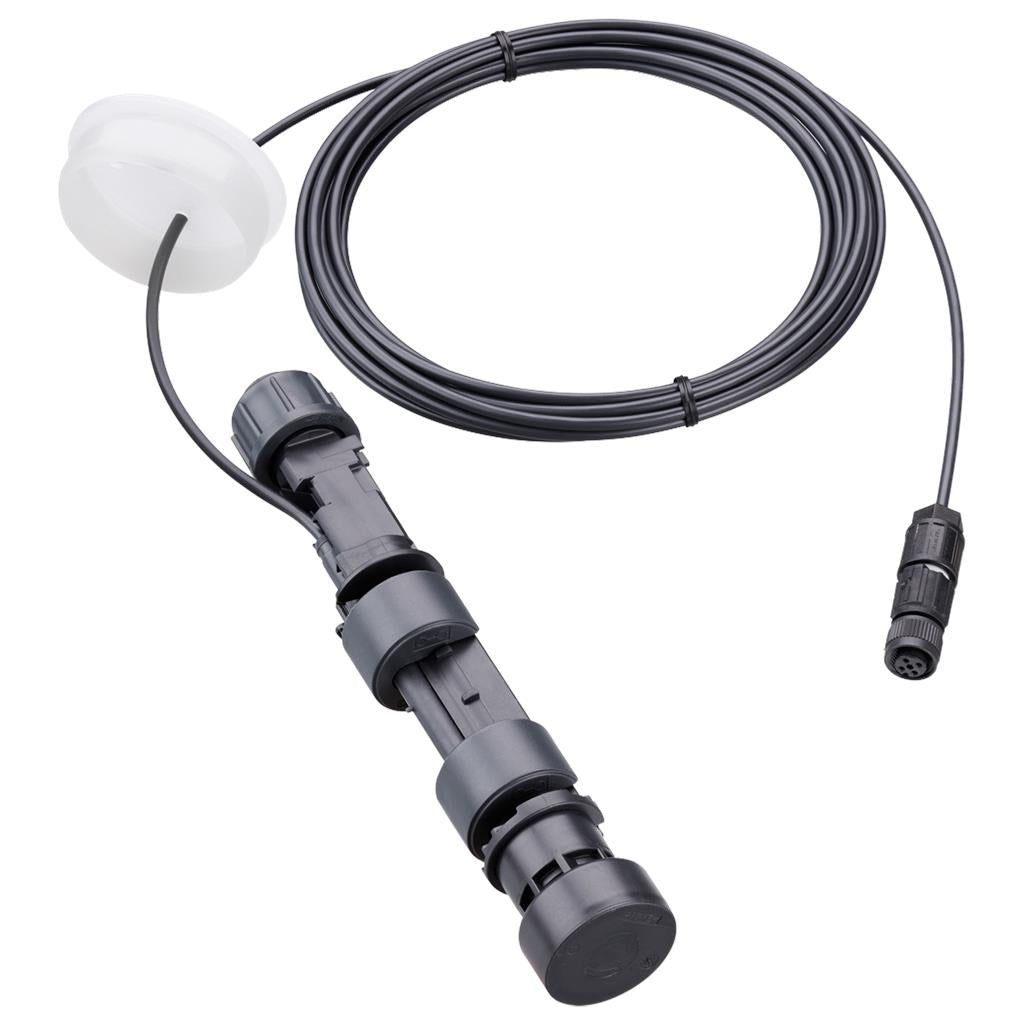

Fußventil 2L-G5/8 PE/T/C X [98070975]

Foot valves are installed at the lower end of the suction Hose and include weight, strainer (mesh size 0,8mm) and non-return valve Additionally they include

Reed-switch unit with two floaters for low level and empty indication (switch mode adjustable NO or NC) Cable with PE jacket M 12 plug to connect DDA, DDC, DDE or DDI dosing pump PE cap, d.58 mm, for assembly in Grundfos

cylindrical tanks, or for use with tank adaptors.
