CRN 10-10 A-P-A-V-HQQV [96503571]
CRN 10-10 A-P-A-V-HQQV [96503571]
Grundfos
Normaler Preis
€6.041,60 EUR
Normaler Preis
€7.552,00 EUR
Verkaufspreis
€6.041,60 EUR
Grundpreis
/
pro
Preis ohne MwSt.
Versand wird beim Checkout berechnet
Verfügbarkeit für Abholungen konnte nicht geladen werden

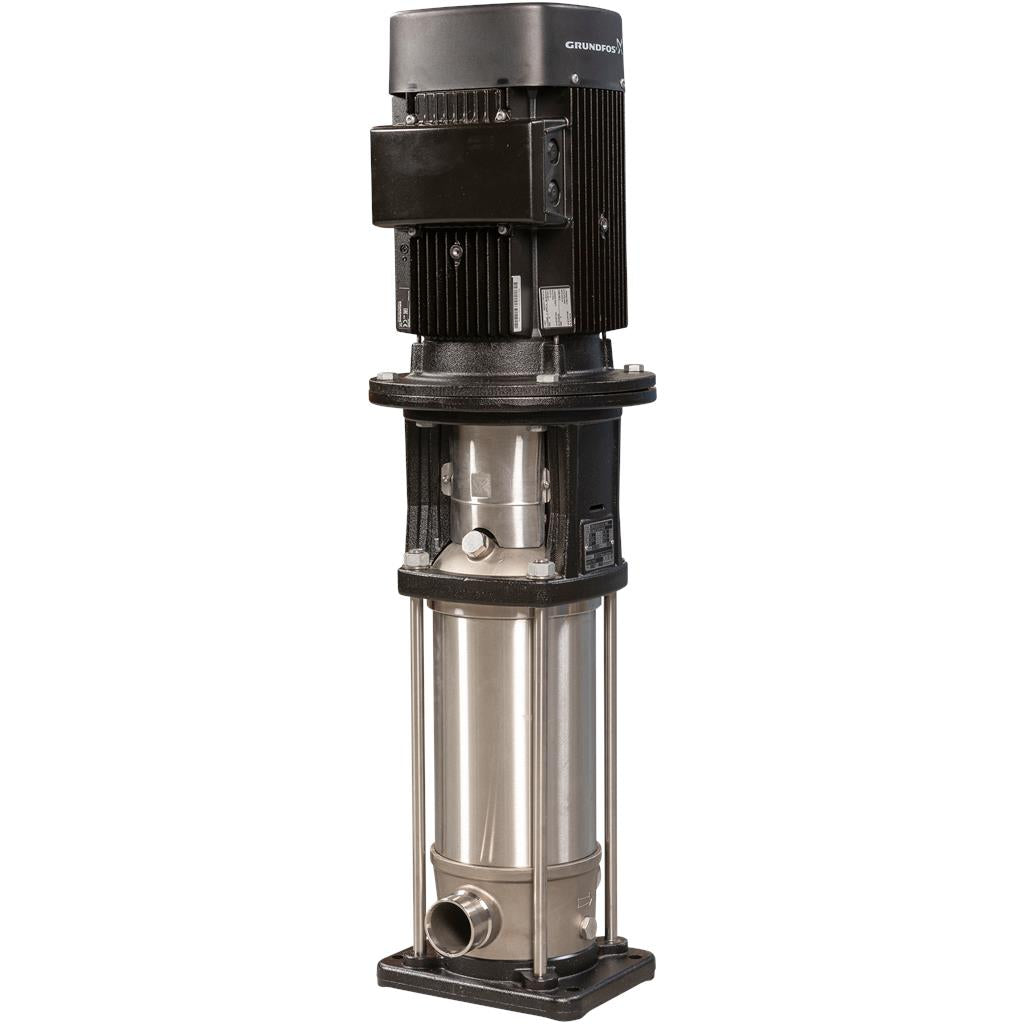

Vertikale, mehrstufige Kreiselpumpe mit gegenüberliegenden Saug- und Druckstutzen (Inline-Bauweise). Die medienberührten Bauteile der Pumpe sind aus hochwertigem Edelstahl. Die Patronendichtung verspricht eine hohe Zuverlässigkeit und Servicefreundlichkeit. Die Kraftübertragung erfolgt über eine starre, geteilte Kupplung. Der Rohrleitungsanschluss erfolgt über PJE-Kupplungen (Victaulic®). Die Pumpe ist mit einem 3-phasigen, lüftergekühlten Asynchronmotor ausgestattet.
Specs Table
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -20 .. 90 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |

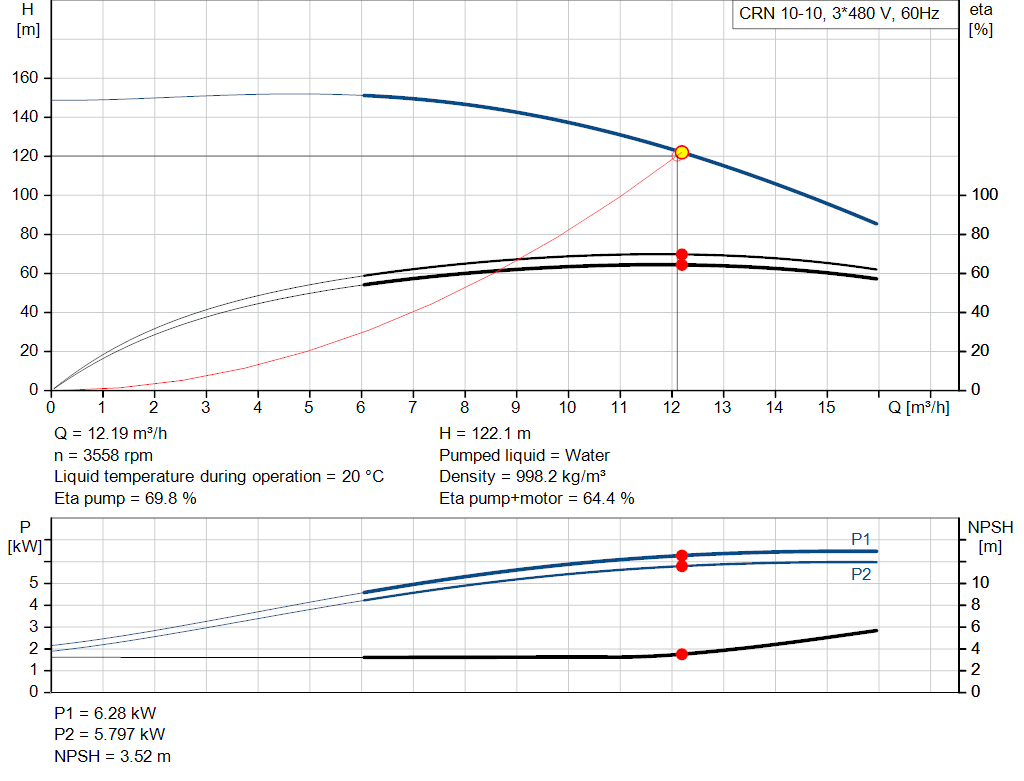

| Pump speed on which pump data are based: | 3525 rpm |
| Rated flow: | 12.1 m³/h |
| Rated head: | 120.2 m |
| Pump orientation: | Vertical |
| Shaft seal arrangement: | Single |
| Primary shaft seal: | HQQV |
| Code for shaft seal: | HQQV |
| Approvals: | CE,EAC,UKCA,SEPRO |
| Approvals for drinking water: | WRAS |
| Curve tolerance: | ISO9906:2012 3B |
| Materials: | |
| Base: | Stainless steel |
| EN 1.4408 | |
| AISI 316 | |
| Impeller: | Stainless steel |
| EN 1.4401 | |
| AISI 316 | |
| Bearing: | SIC |
| Installation: | |
| Maximum ambient temperature: | 60 °C |
| Maximum operating pressure: | 25 bar |
| Max pressure at stated temp: | 25 bar / 90 °C |
| 25 bar / -20 °C | |
| Type of connection: | PJE |
| Size of inlet connection: | DN 50 |
| 2 inch | |
| Size of outlet connection: | DN 50 |
| 2 inch | |
| Pressure rating for connection: | PN 50 |
| Flange size for motor: | FF265 |

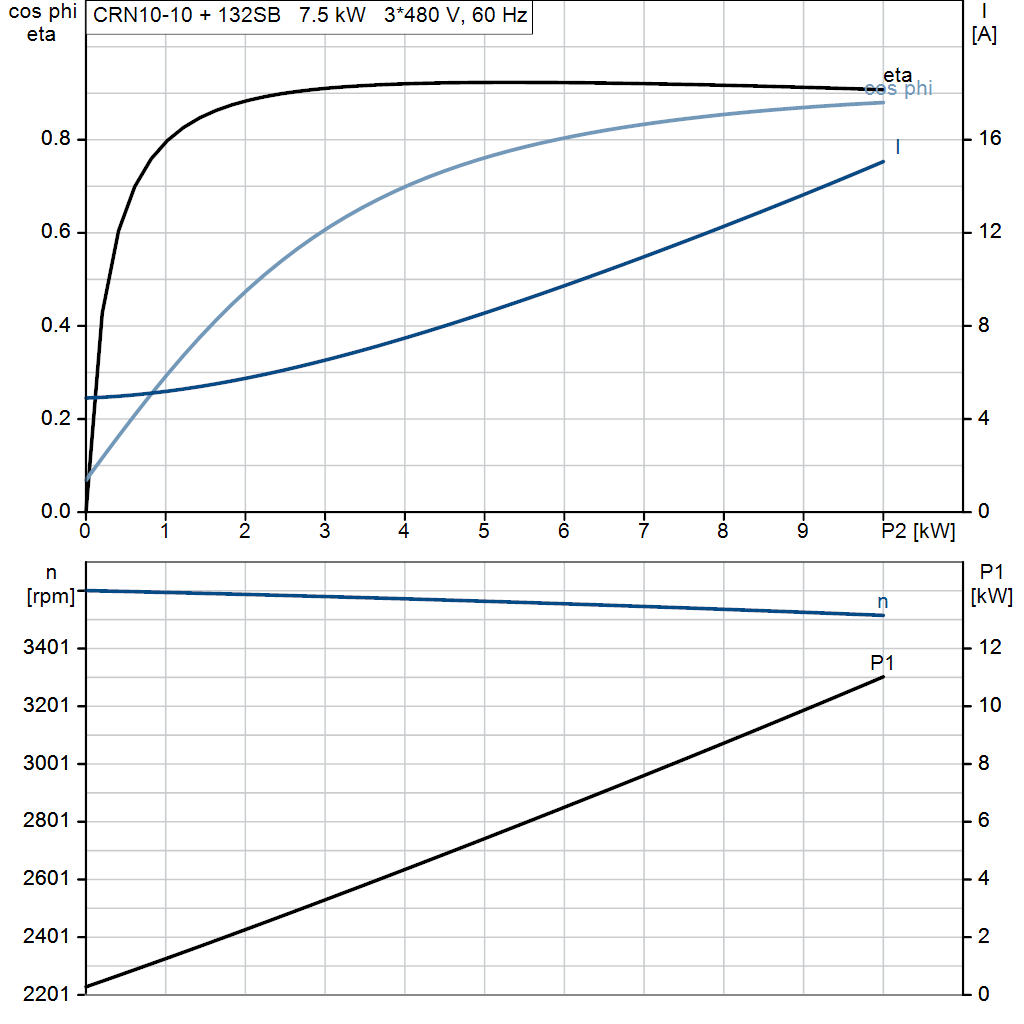

| Electrical data: | |
| Motor standard: | IEC |
| Motor type: | 132SB |
| Rated power - P2: | 7.5 kW |
| Power (P2) required by pump: | 7.5 kW |
| Mains frequency: | 60 Hz |
| Rated voltage: | 3 x 400-480D/690Y V |
| Rated current: | 13,8-12,0/8,10 A |
| Starting current: | 750-1050 % |
| Cos phi - power factor: | 0.88-0.82 |
| Rated speed: | 3500-3530 rpm |
| IE Efficiency class: | NEMA Premium / IE3 60Hz |
| Motor efficiency at full load: | 90.2 % |
| Motor efficiency at 3/4 load: | 90.9-90.7 % |
| Motor efficiency at 1/2 load: | 91.1-89.7 % |
| Number of poles: | 2 |
| Enclosure class (IEC 34-5): | 55 Dust/Jetting |
| Insulation class (IEC 85): | F |
| Motor No: | 85U17522 |
| Controls: | |
| Frequency converter: | None |
| Others: | |
| Terminal box position: | 6 |
| Minimum efficiency index, MEI ≥: | 0.70 |
| Net weight: | 95 kg |
| Gross weight: | 117 kg |
| Shipping volume: | 0.285 m³ |
| Country of origin: | HU |
| Custom tariff no.: | 84137075 |
